名称：Turbine flowmeter型号：GMWL-50

资料下载

测试原理

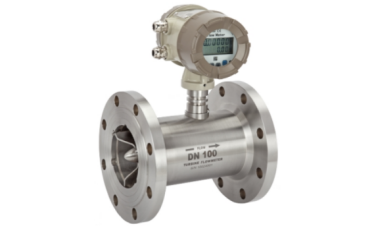

A liquid turbine flowmeter consists of a turbine and an externally mounted pulse detector. Liquid flows into the turbine, causing the rotor to rotate. A specific inner diameter makes the rotor speed directly proportional to the flow rate. The pulse detector converts the detected rotor blade rotation into a pulse signal proportional to the flow rate. The specific variable is the K factor (pulse number/liter), which is determined by calibration for each sensor and indicated on the label. A 5-point calibration report is also available on request.
技术优点

Compact and light structure, easy installation and maintenance, large circulation capacity.

It is suitable for high pressure measurement. It is easy to make high pressure instrument without opening holes on the instrument body.

The hard alloy bearing thrust sensor not only ensures accuracy, but also improves wear resistance.

High accuracy, ±0.5%, precision up to ±0.2%, good repeatability, stable measurement.

Field display type lithium battery power supply, can be used for more than 3 years.

High anti - electromagnetic interference and anti - vibration ability.
产品应用

Turbine flowmeter is a speed meter with high accuracy

Good repeatability, simple structure, high pressure resistance, wide measuring range, small volume, light weight, small pressure loss, long life, simple operation, easy maintenance and other advantages, used for closed pipeline measurement of low viscosity, no strong corrosion, clean liquid volume flow and accumulation. Can be widely used in petroleum, chemical industry,

Metallurgy, organic liquid, inorganic liquid, liquefied gas,

City gas pipe network, pharmaceutical, food, paper and other industries

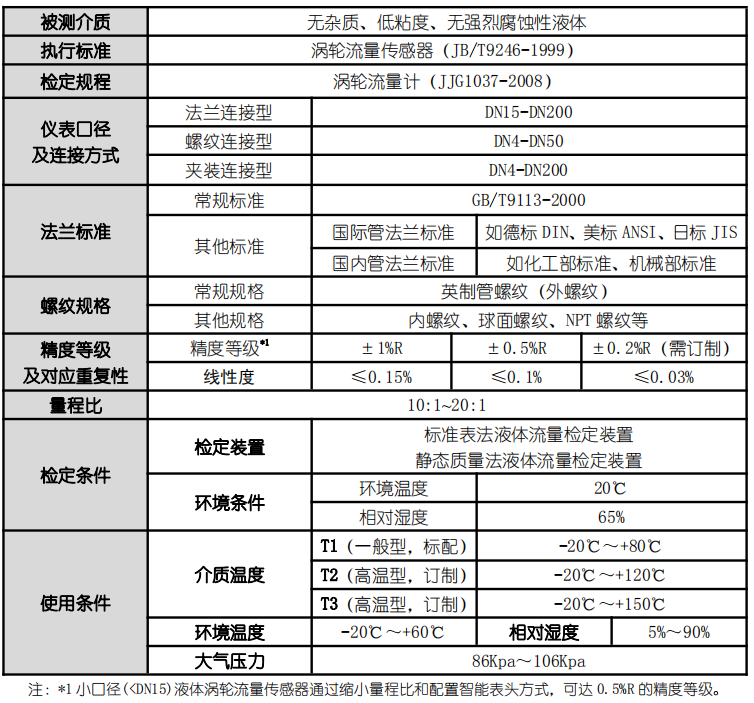

产品性能
设计参数
安装指导
适用工况
订货须知

Compact and light structure, easy installation and maintenance, large circulation capacity.

It is suitable for high pressure measurement. It is easy to make high pressure instrument without opening holes on the instrument body.

The hard alloy bearing thrust sensor not only ensures accuracy, but also improves wear resistance.

High accuracy, ±0.5%, precision up to ±0.2%, good repeatability, stable measurement.

Field display type lithium battery power supply, can be used for more than 3 years.

High anti - electromagnetic interference and anti - vibration ability.

Turbine flowmeter is a speed meter with high accuracy

Good repeatability, simple structure, high pressure resistance, wide measuring range, small volume, light weight, small pressure loss, long life, simple operation, easy maintenance and other advantages, used for closed pipeline measurement of low viscosity, no strong corrosion, clean liquid volume flow and accumulation. Can be widely used in petroleum, chemical industry,

Metallurgy, organic liquid, inorganic liquid, liquefied gas,

City gas pipe network, pharmaceutical, food, paper and other industries
